Kryptonite for Apache Kafka
Client-Side Field Level Cryptography (CSFLC) for Data Streaming Workloads
Encrypt and decrypt payload fields end-to-end before sensitive data ever reaches the Kafka brokers.
Seamless integrations with and across Apache Kafka Connect, Apache Flink, ksqlDB, and a standalone Quarkus HTTP service.

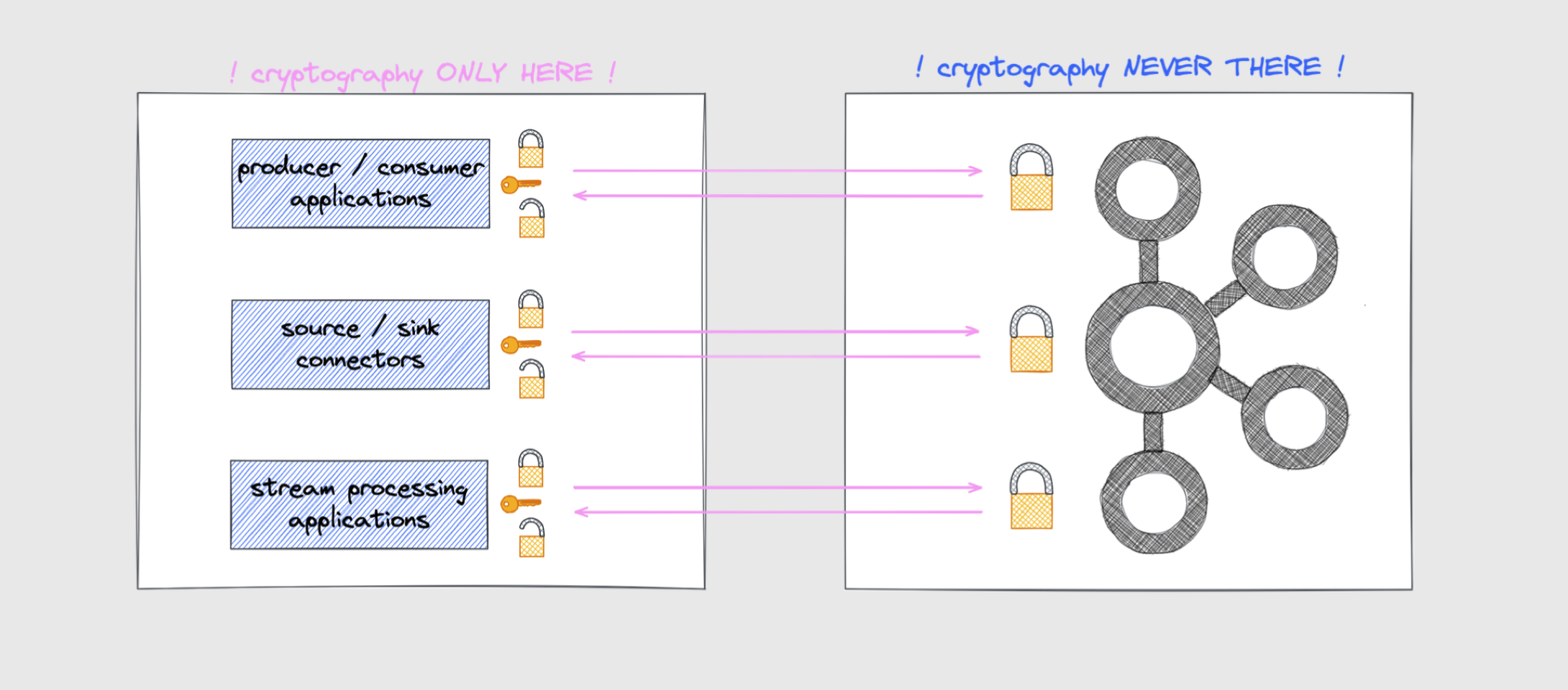

Client-Side Cryptography means all cryptographic operations are guaranteed to only ever happen on the client-side.

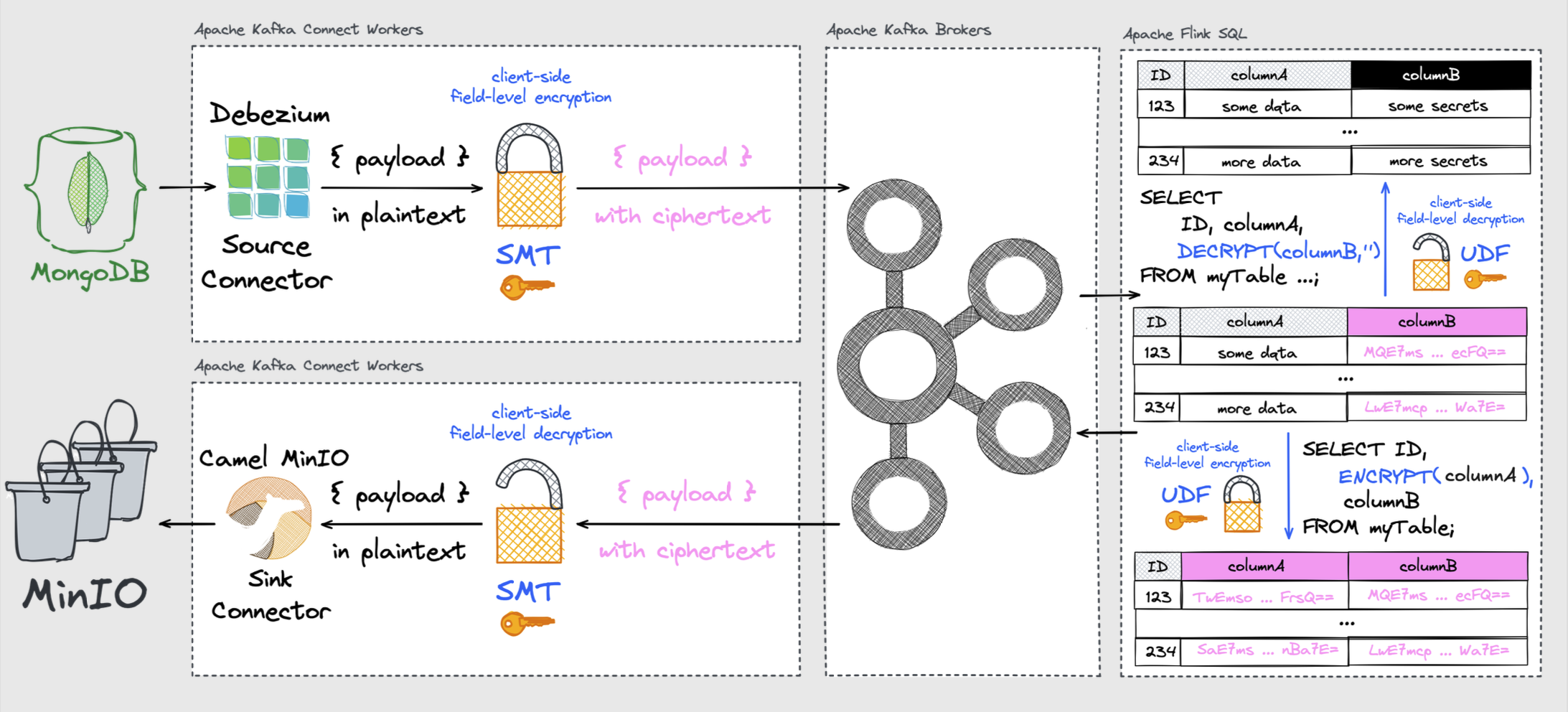

End-to-End Scenario featuring Module Integrations for Apache Kafka Connect and Apache Flink
Why Kryptonite for Apache Kafka?
-
True Client-Side Encryption
Sensitive plaintext never leaves the client-side application.
Neither Kafka brokers nor any intermediary Kafka proxy infrastructure ever gets to see sensitive payload fields in plaintext. Encryption / Decryption of data happens exclusively within the security perimeter of the client-side application.
-

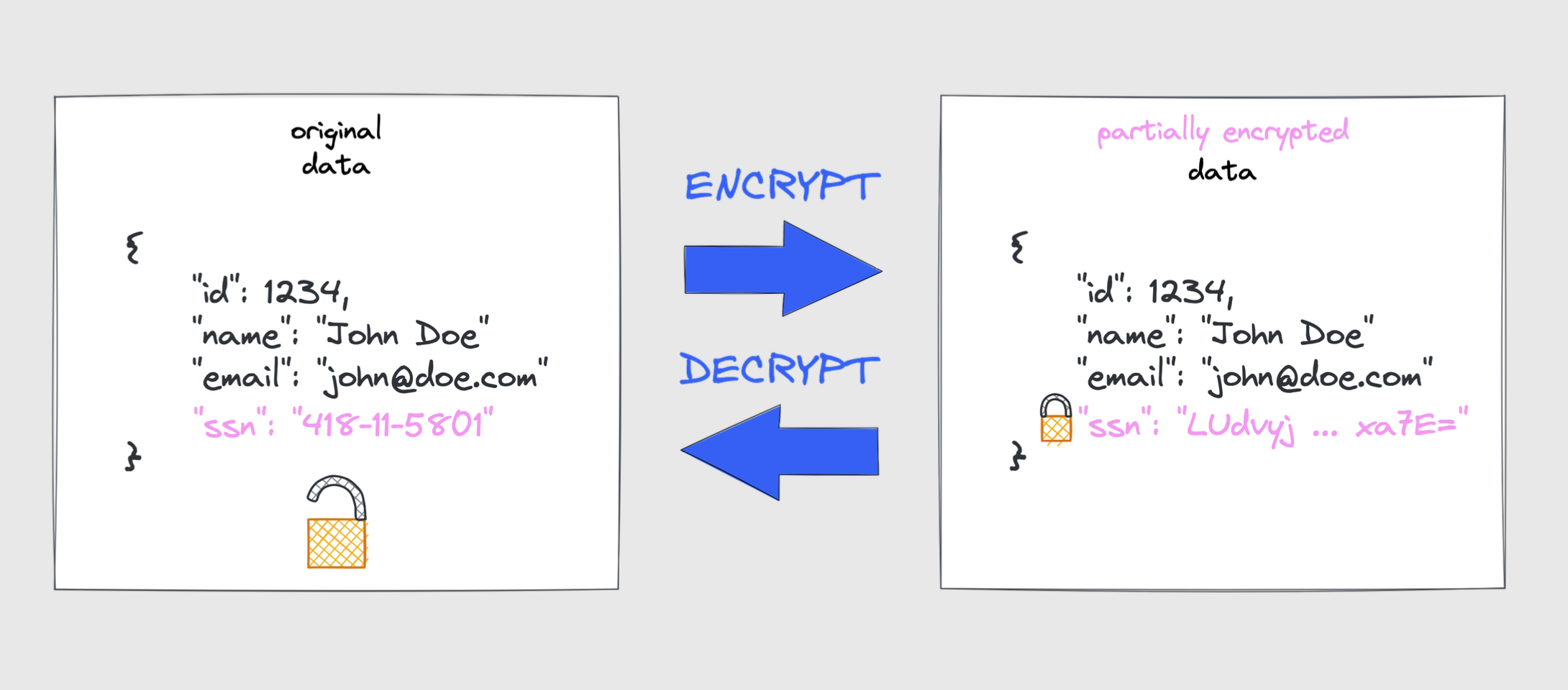

Field-Level Scope
Configure which payload fields need this extra level of data protection.
It's not an all or nothing approach. Need to encrypt just one field, a handful of fields, or maybe all payload fields? Everything else stays untouched and is still directly processable by any downstream applications.
-
Flexible Key Management
You decide how to manage cryptographic keys.
Quickly need to inline keysets for development? Need to store keysets in a cloud key management systems (KMS)? Want to encrypt keysets with a key encryption key (KEK) stored in a cloud provider's KMS? GCP Cloud KMS, AWS KMS, and Azure Key Vault are supported - the choice is yours!
-
Four Ready-Made Integrations
Apache Kafka Connect SMTs, Apache Flink UDFs, ksqlDB UDFs, and a Quarkus Funqy HTTP service. No custom serializers or any custom code required as the encrypt/decrypt capabilities are largely based on flexible configuration options.
-
Versatile Encryption Capabilities
By default, all modules apply probabilistic encryption using AES GCM 256-bit encryption. If your use case requires deterministic encryption you can choose AES GCM SIV. In order to allow for format-preserving encryption, FF3-1 is currently supported.
-
Built on top of Google Tink
Cryptographic primitives come directly from Tink. It's a vetted and widely deployed open-source cryptography library implemented and maintained by cryptographers and security engineers at Google. If you want to learn more read What is Tink?
Four Integration Modules
Apache Kafka Connect SMT

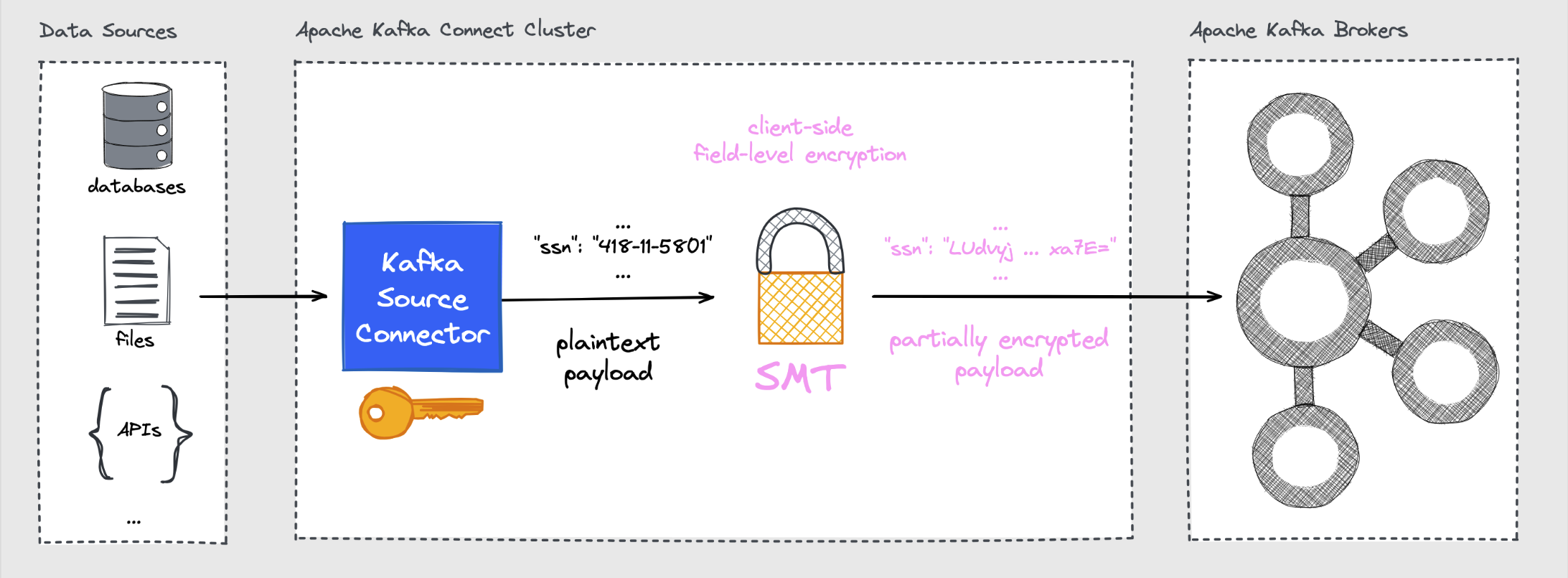

Field-Level Encryption with Source Connectors

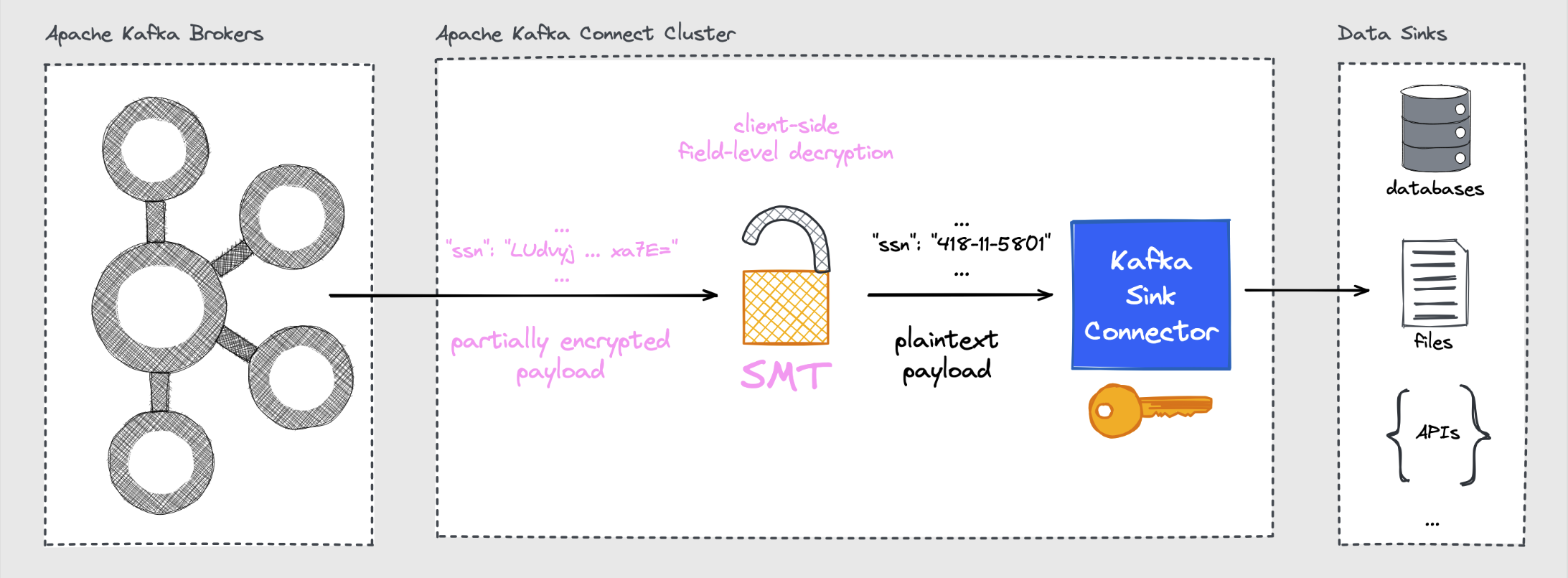

Field-Level Decryption with Sink Connectors
The CipherField Single Message Transformation (SMT) encrypts or decrypts payload fields in combination with pretty much any source or sink connector available for Kafka Connect. The SMT works with schemaless JSON and common schema-aware formats (Avro, Protobuf, JSON Schema).
Apache Flink UDFs
Field-Level Encryption with UDFs in Flink SQL

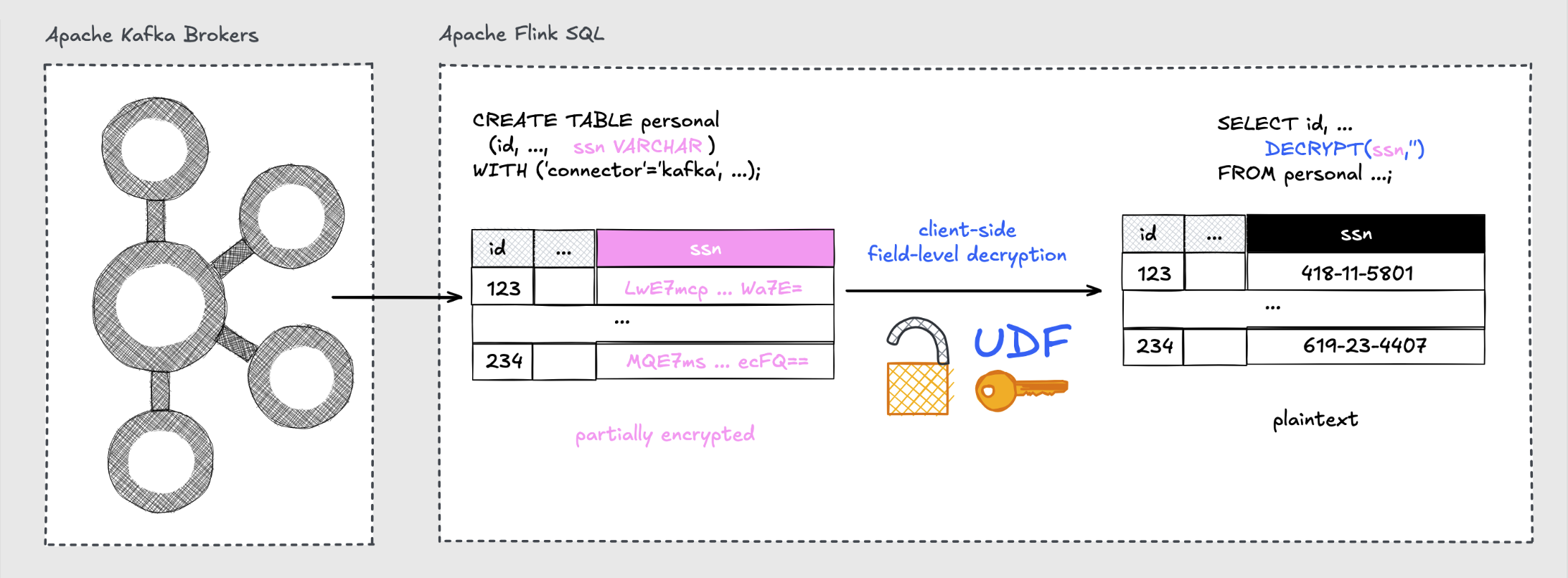

Field-Level Decryption with UDFs in Flink SQL
Multiple user-defined functions (K4K_ENCRYPT_*/K4K_DECRYPT_*) can be applied in Flink Table API or Flink SQL jobs. The UDFs can process both primitive and complex Flink Table API data types.
ksqlDB UDFs
Field-Level Encryption with UDFs in ksqlDB

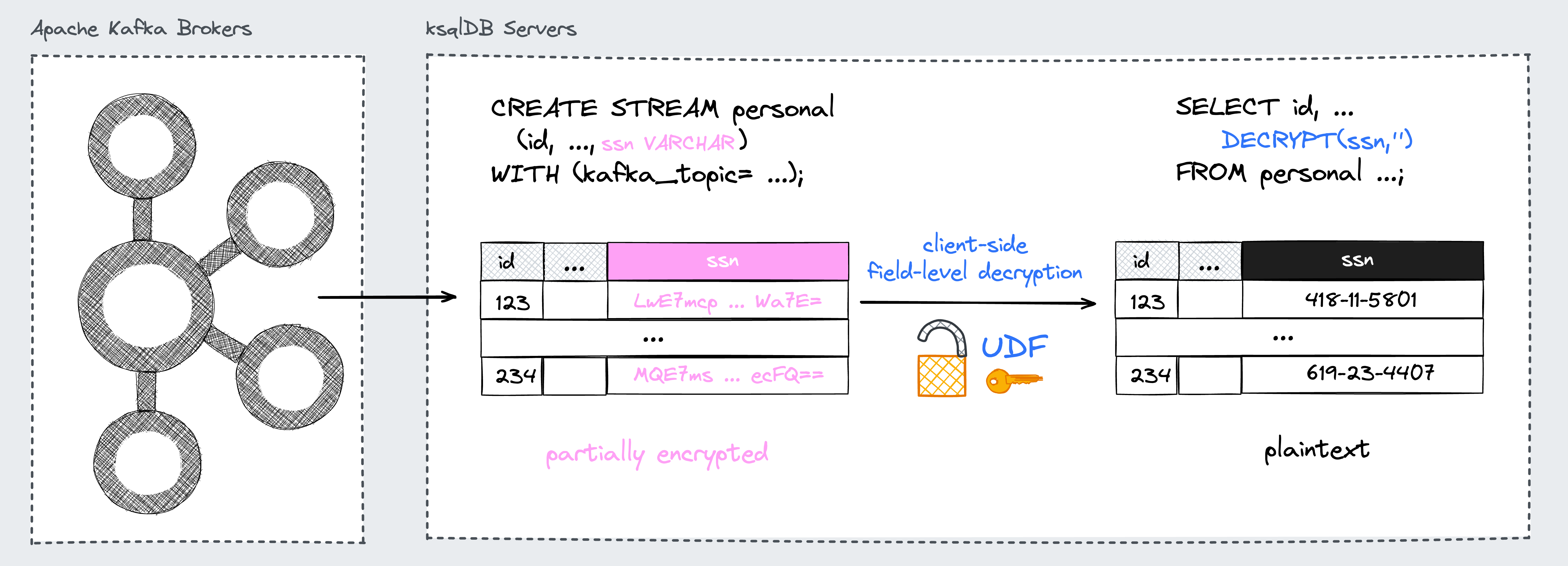

Field-Level Decryption with UDFs in ksqlDB
Multiple user-defined functions (K4K_ENCRYPT*/K4K_DECRYPT*) can be applied in ksqlDB STREAM or TABLE queries. The UDFs can process both primitive and complex ksqlDB data types.
Quarkus HTTP Service

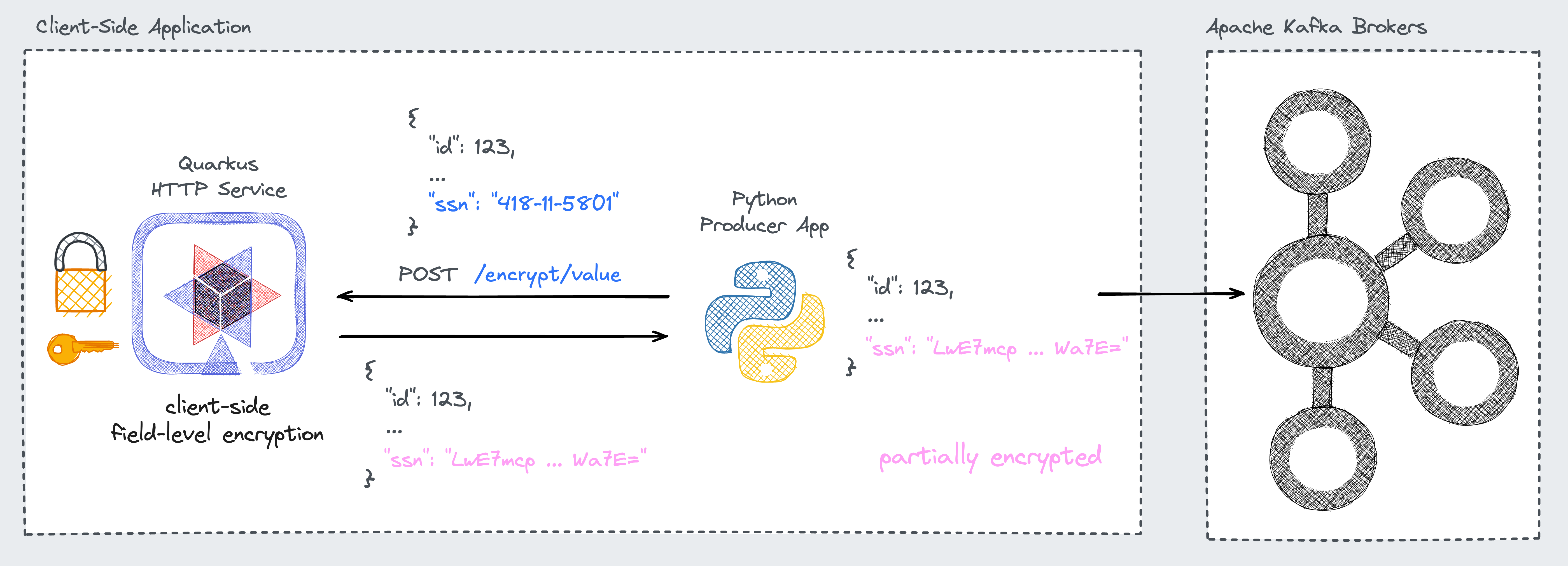

Field-Level Encryption with HTTP API
Field-Level Decryption with HTTP API
A lightweight HTTP service that exposes a web API with multiple encryption and decryption endpoints. This enables applications written in any language to participate in end-to-end encryption scenarios.
Supported Encryption Algorithms
| Algorithm | Mode | Input | Output | Usage |
|---|---|---|---|---|
TINK/AES_GCM |
AEAD probabilistic | any supported data type | string (Base64) | most cases (default) |
TINK/AES_GCM_SIV |
AEAD deterministic | any supported data type | string (Base64) | equality match, join operations, or aggregrations on encrypted data |
CUSTOM/MYSTO_FPE_FF3_1 |
format-preserving encryption | string (specific alphabet) | string (same alphabet as input) | if alphabet must be preserved (credit cards, SSNs, IBANs, ...) |
Available Key Management Options
| Key Source | Keyset Storage | Keyset Encryption | Security | Recommended for ... |
|---|---|---|---|---|
CONFIG |
inline as part of configuration | None | lowest | Local Development & Testing or Demos |
CONFIG_ENCRYPTED |
inline as part of configuration | Cloud KMS wrapping key | reasonable | Production (without centralised management) |
KMS |
cloud secret manager | None | reasonable | Production (with centralised management) |
KMS_ENCRYPTED |
cloud secret manager | Cloud KMS wrapping key | highest | Production (with centralised management) |
Key Management Details | Cloud KMS Overview
Community Project Disclaimer
Kryptonite for Kafka is an independent community project. It's neither affiliated with the ASF and the respective upstream projects nor is it an official product of any company related to the addressed technologies.
